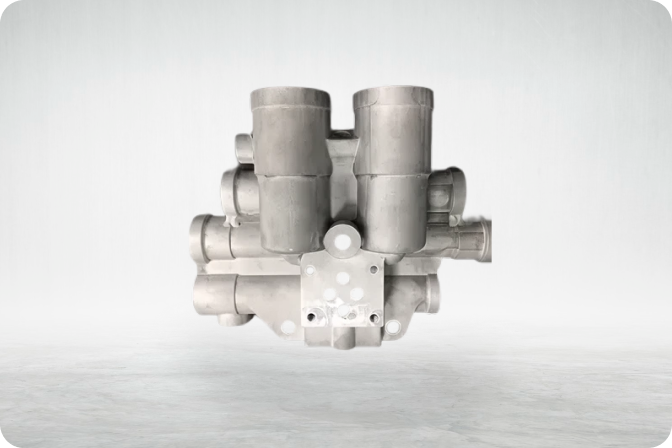

Oil Intake Manifold
Wipro 3D delivers flight-ready components engineered for extreme temperatures, launch forces, and weight-critical missions.
CATEGORY
Industrial
MATERIAL
AlSi10Mg
In the highly competitive auto industry, speed to market, high strength to weight ratios, fuel efficiency are some of the few goals that constantly drive engineers and designers. New high-strength steels, along with composites and adhesives, are helping to reduce weight and increase strength in modern vehicles. Additive Manufacturing using metal alloys, has found interesting applications in tooling, jigs and fixtures, and design prototypes allowing companies to iterate rapidly and validate designs of components and subsystems. While metal Additive Manufacturing of co components at the production scale of automotive may be challenging, there are certainly emerging applications in the low volume, higher end of the industry including Formula 1 and military vehicles.
Additive Manufacturing allows optimizing the maximum strength with minimum weight and material (Topology Optimization) owing to the potential to handle complex geometries. "Monolithizing" sub-components or child parts into a monolith assembly reduces production time, improves functional performance. Typical applications of Metal AM in Automotive are weight optimized manifolds, turbine housings that form part of the current turbo powertrain ERS systems, water-wheel pumps , aluminum axle pivots. A leading name in industry has developed rocker arms and camshaft bearing caps using Metal Additive Manufacturing for its next generation truck engines.

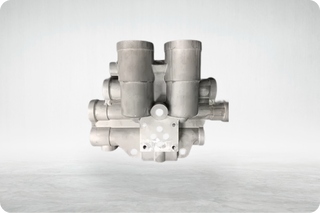

About the Project
AM Competencies Used
Additive Design & Engineering
Wipro 3D used its extensive experience in Additive Design of various flow components to improve the channel design while retaining its functionality.
Post Processing
Post processing including powder recovery is extremely challenging in complex flow channels. Wipro 3D has delivered the project with successful strategies in these areas.
Build Technology
An entirely new set of customized parameters specific to the Manifold were evolved. Preliminary testing of the flow channels was performed on the Manifold.

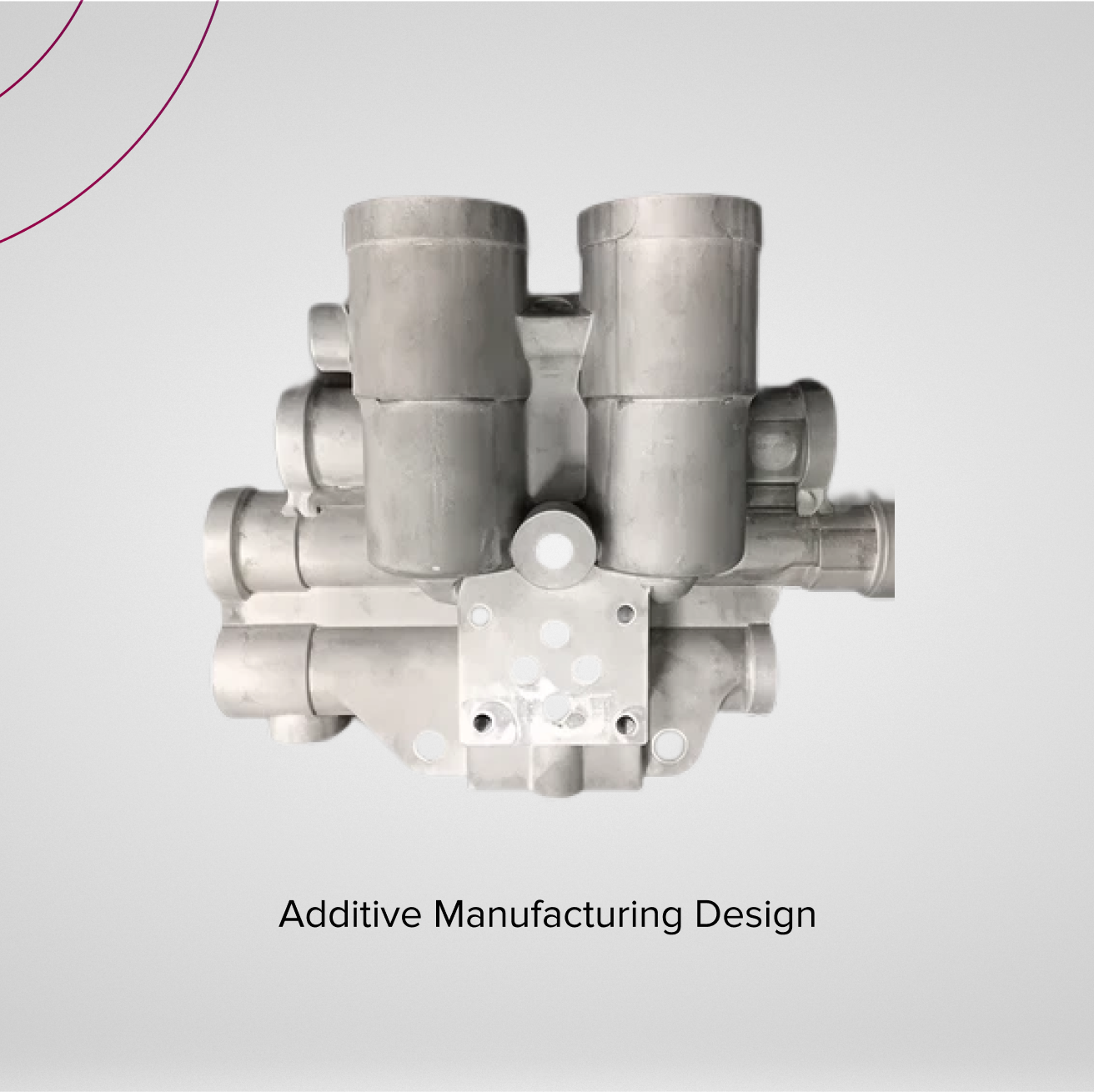

AM Value Addition
Cost Of Iteration
Time-to-realize
The entire set of components was turned around in a period of one week, with the requisite mechanical properties, tolerances and finish, allowing designers to rapidly move to the design validation and improvement stage.
